AB43T – 38mm BANNISTER RAIL RETURN END – with Tab – with or without Swaged End
$54.00 – $75.00 Excl GST
| Product Attachments | |
|---|---|

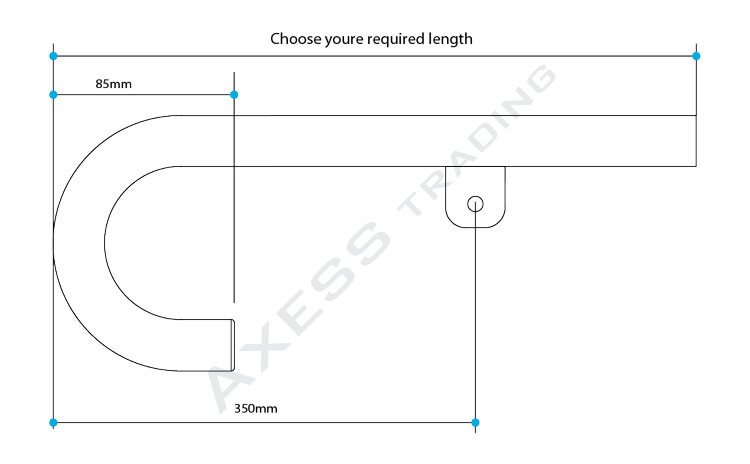

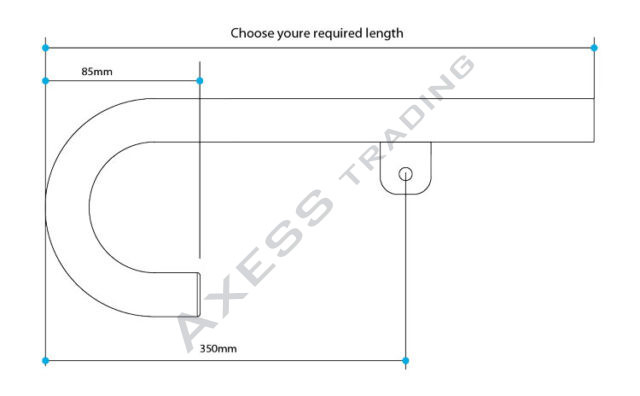

38mm Bannister Rail Tube with 180° Return End with Tab
Bannister rail return end offers the user a confidence inspiring feel. This self supporting size is used for the post as well as for the rail. Most builders prefer a post spacing of no more than 2 meters to achieve an optimum result. Builders also order custom manufactured bannister rails for special requirements from our customer service team. What is a swaged end after all ? A swaged end enables two similar tube to be joined together by means of the reduced diameter of the swaged end which fits into the tube to be joined . Furthermore a dress ring hides any joints from being directly visible other than the ring itself which is manufactured of stainless steel as well and has a minimalistic appearance and smooth feel. To that end we supply one dress ring with every tube (swaged on one end)
General tube size = ∅38mm X 1.2mm wall thickness.
How to order ( see the table below)
| Part No | Banister rail with °180 Return Bend | Finish |
| AB43T.1000 | 38mm x 1000mm | Satin Finish (Brushed finish) |
| AB43T.1000S | 38mm x 1000mm (swaged end) | Satin Finish (Brushed finish) |
| AB43T.1500 | 38mm x 1500mm | Satin Finish (Brushed finish) |
| AB43T.1500S | 38mm x 1500mm (swaged end ) | Satin Finish (Brushed finish) |
| AB43T.2000 | 38mm x 2000mm | Satin Finish (Brushed finish) |
| AB43T.2000S | 38mm x 2000mm (swaged end) | Satin Finish (Brushed finish) |
